Gameplay Debugger Setup

Create an editor only module

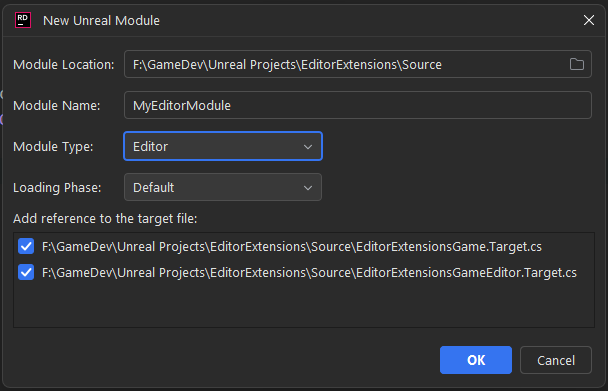

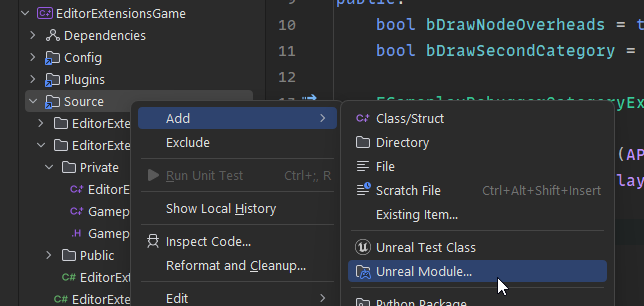

In rider, you can easily add a new editor module like so; otherwise refer to the UE Documentation

Add gameplay debugger dependencies to your Build.cs file

Specifically: GameplayDebugger and the GameplayDebuggerExtension's dependency: GameplayDebuggerExtension

public class EditorExtensionsGameEditor : ModuleRules
{
	public EditorExtensionsGameEditor(ReadOnlyTargetRules Target) : base(Target) {
		PCHUsage = ModuleRules.PCHUsageMode.UseExplicitOrSharedPCHs;

		PublicDependencyModuleNames.AddRange(
			new string[]
			{
				"Core",
			}
		);

		PrivateDependencyModuleNames.AddRange(
			new string[]
			{
				"CoreUObject",
				"Engine",
				"Slate",
				"InputCore",
				"SlateCore",
				"GameplayDebugger",
				"GameplayDebuggerExtension",
			}
		);
	}
}

				"GameplayDebugger",
				"GameplayDebuggerExtension",

Setup your editor module:

EditorExtensionsGameEditorModule.h

#pragma once

#include "CoreMinimal.h"
#include "Modules/ModuleManager.h"

class FEditorExtensionsGameEditorModule : public IModuleInterface
{
public:
    virtual void StartupModule() override;
    virtual void ShutdownModule() override;
};

EditorExtensionsGameEditorModule.cpp

#include "EditorExtensionsGameEditor.h"
#if WITH_GAMEPLAY_DEBUGGER
#include "GameplayDebugger.h"
#endif
#define LOCTEXT_NAMESPACE "FEditorExtensionsGameEditorModule"

void FEditorExtensionsGameEditorModule::StartupModule() {

#if WITH_GAMEPLAY_DEBUGGER
	IGameplayDebugger& GameplayDebuggerModule = IGameplayDebugger::Get();

    [[[// Continue with the overview to setup the plugin)|overview.html]]]

	GameplayDebuggerModule.NotifyCategoriesChanged();
#endif
}

void FEditorExtensionsGameEditorModule::ShutdownModule() {
#if WITH_GAMEPLAY_DEBUGGER
	if (IGameplayDebugger::IsAvailable()) {
		IGameplayDebugger& GameplayDebuggerModule = IGameplayDebugger::Get();

		GameplayDebuggerModule.NotifyCategoriesChanged();
	}
#endif
}

#undef LOCTEXT_NAMESPACE

IMPLEMENT_MODULE(FEditorExtensionsGameEditorModule, EditorExtensionsGameEditor)

Last modified: 11 November 2024
